Power Factor Correction: Why Capacitors Are Critical for Electrical Efficiency

Executive Summary

Power factor correction represents one of the most impactful yet underutilized strategies for improving electrical system efficiency in commercial and industrial facilities. With energy costs continuing to rise and sustainability initiatives becoming increasingly important, understanding how capacitors improve power factor can deliver substantial cost savings and operational benefits. This comprehensive guide explores the fundamentals of power factor, the critical role capacitors play in correction systems, and the measurable benefits that organizations can achieve through proper implementation. From reducing utility penalty charges to extending equipment lifespan, power factor correction with capacitors offers a compelling return on investment that every facility manager should understand.

Introduction: The Hidden Cost of Poor Power Factor

In the complex world of electrical systems, power factor often remains an invisible yet costly problem. Many facility managers and business owners pay substantial utility penalties without fully understanding why, while their electrical equipment operates inefficiently, consuming more energy than necessary. The solution lies in understanding how capacitors can dramatically improve power factor, leading to immediate cost savings and long-term operational benefits.

Power factor correction isn’t just a technical consideration, it’s a business imperative. Poor power factor can increase your electricity bills by 15-30% through utility penalty charges, while simultaneously reducing the efficiency and lifespan of your electrical equipment. Fortunately, capacitors provide an effective, proven solution that can transform your facility’s electrical performance.

What is Power Factor?

Defining Power Factor in Simple Terms

Power factor represents the efficiency of electrical power usage in your facility. Technically, it’s the ratio of real power (measured in kilowatts) to apparent power (measured in kilovolts-amperes). A perfect power factor of 1.0 means your electrical system uses power with 100% efficiency, while lower values indicate decreasing efficiency.

Think of power factor like the efficiency of a car engine. Just as a well-tuned engine converts more fuel into forward motion, a system with a good power factor converts more electrical energy into useful work rather than waste.

The Three Types of Power

Understanding power factor requires grasping three fundamental types of electrical power:

Real Power (kW): The actual power consumed by equipment to perform useful work, such as running motors, lighting, or heating systems. This is the power that accomplishes the intended task.

Reactive Power (kVAR): Power that doesn’t perform useful work but is necessary for the operation of inductive equipment like motors and transformers. This power oscillates between the source and load, creating magnetic fields but not producing mechanical work.

Apparent Power (kVA): The combination of real and reactive power, representing the total power that must be supplied by the utility company.

Power Factor Calculation and Measurement

The power factor calculation follows this simple formula:

Power Factor = Real Power (kW) ÷ Apparent Power (kVA)

Power factor is expressed as either a decimal (0.0 to 1.0) or a percentage (0% to 100%). Most utilities consider power factors below 0.85 to be poor and subject to penalty charges.

Power Factor RangeClassificationTypical Penalty
0.95 – 1.00ExcellentNo penalty
0.85 – 0.94GoodMinimal penalty
0.70 – 0.84Poor10-15% penalty
Below 0.70Very Poor15-30% penalty

Understanding Reactive Power and Its Impact

The Problem with Inductive Loads

Most industrial and commercial electrical equipment creates inductive loads that require reactive power to function. Motors, transformers, fluorescent lighting, and welding equipment all draw reactive power, which creates a lag between voltage and current waveforms.

This lag means that while the utility company must generate and transmit both real and reactive power, only the real power performs useful work. The reactive power travels back and forth between the utility and your facility, creating several problems:

  • Increased transmission losses: Higher current flow through conductors increases I²R losses
  • Utility system strain: Power plants must generate additional power that doesn’t produce revenue
  • Equipment stress: Higher currents cause additional heating and wear on electrical components

Measuring Reactive Power Impact

Consider a typical industrial facility with the following power characteristics:

  • Real Power: 800 kW
  • Power Factor: 0.70
  • Apparent Power: 800 kW ÷ 0.70 = 1,143 kVA
  • Reactive Power: √(1,143² – 800²) = 816 kVAR

This facility draws 43% more current than necessary, resulting in significant efficiency losses and utility penalties.

How Capacitors Improve Power Factor

The Science Behind Capacitive Correction

Capacitors provide the elegant solution to poor power factor by supplying reactive power locally, directly at the point of use. Unlike inductive loads that require reactive power, capacitive loads generate reactive power. When properly sized and installed, capacitors create reactive power that offsets the reactive power demand of inductive equipment.

The relationship works through the principle of phase compensation. Inductive loads cause current to lag behind voltage, while capacitive loads cause current to lead voltage. By introducing the right amount of capacitance, the leading reactive power from capacitors cancels out the lagging reactive power from inductive loads, bringing the overall power factor closer to unity.

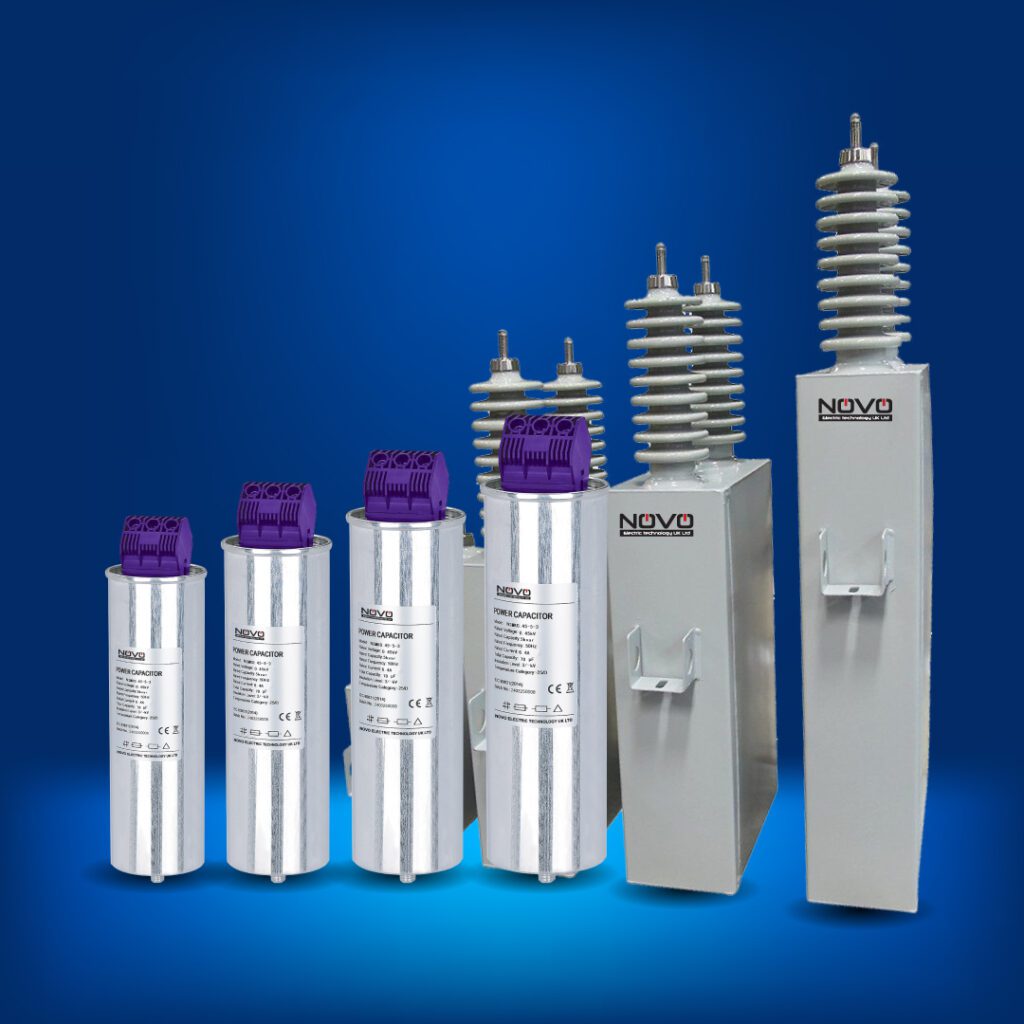

Types of Power Factor Correction Capacitors

Fixed Capacitors: Permanently connected capacitors that provide constant reactive power compensation. These work well for facilities with steady, predictable loads but can lead to over-correction during light load periods.

Automatic Capacitor Banks: Sophisticated systems that use controllers to switch capacitor banks in and out based on real-time power factor measurements. These systems provide optimal correction across varying load conditions.

Individual Motor Capacitors: Small capacitors connected directly to individual motors, providing localized correction. This approach works well for specific equipment but doesn’t address facility-wide power factor issues.

Capacitor Sizing and Selection

Proper capacitor sizing requires careful analysis of your facility’s electrical characteristics. The required capacitive reactive power (kVAR) depends on your current power factor and target power factor:

Required kVAR = kW × (tan θ₁ - tan θ₂)

Where:

  • kW = Real power load
  • θ₁ = Phase angle at current power factor
  • θ₂ = Phase angle at desired power factor
Current PFTarget PF 0.95Multiplier
0.700.950.714
0.750.950.553
0.800.950.421
0.850.950.308

Benefits of Power Factor Correction

Immediate Financial Benefits

The most compelling reason for implementing power factor correction lies in the immediate financial benefits. Utility companies charge penalties for poor power factor because it forces them to generate and transmit reactive power that produces no revenue. These penalties typically range from 10% to 30% of your electrical bill.

Case Study Example: A manufacturing facility with a monthly electrical bill of $25,000 and a power factor of 0.72 faces a 20% penalty charge, adding $5,000 monthly to their costs. Installing appropriate capacitors to improve the power factor to 0.95 eliminates this penalty, saving $60,000 annually.

Reduced Energy Consumption

Power factor correction with capacitors reduces the total current drawn from the utility, which decreases I²R losses throughout your electrical system. These losses occur in transformers, conductors, and switchgear, manifesting as heat that represents wasted energy.

A facility drawing 1,000 amperes at 0.70 power factor can reduce current draw to 700 amperes after correction to 1.0 power factor. This 30% reduction in current translates to a 51% reduction in I²R losses (since losses are proportional to current squared).

Equipment Benefits and Extended Lifespan

Lower operating currents resulting from improved power factor reduce thermal stress on electrical equipment. Motors, transformers, and conductors operate cooler, leading to:

  • Extended equipment lifespan: Reduced thermal cycling and stress
  • Lower maintenance costs: Less frequent repairs and replacements
  • Improved reliability: Reduced likelihood of unexpected failures
  • Increased capacity: Existing equipment can handle higher loads

Voltage Regulation Improvements

Poor power factor contributes to voltage drops throughout electrical distribution systems. Capacitors help maintain voltage levels by reducing current flow and providing voltage support. This improvement benefits sensitive electronic equipment that requires a stable voltage for optimal operation.

Implementation Strategies and Best Practices

System Assessment and Analysis

Successful power factor correction begins with a comprehensive electrical system analysis. This assessment should include:

Load Analysis: Document all major electrical loads, their operating schedules, and power factor characteristics. Variable frequency drives, motors, and lighting systems each have unique power factor profiles that affect correction strategies.

Power Quality Monitoring: Install monitoring equipment to capture real-time power factor data over extended periods. This data reveals daily and seasonal variations that influence capacitor sizing and control strategies.

Harmonic Analysis: Modern facilities with electronic loads may have harmonic distortion that affects capacitor performance. Harmonic analysis ensures capacitor systems are designed to handle these conditions safely.

Installation Considerations

Location Selection: Install capacitors as close as possible to inductive loads to maximize benefits. Central correction provides overall improvement, while distributed correction offers more precise control.

Protection Systems: Capacitors require proper protection, including fuses, contactors, and discharge resistors. These protection systems ensure safe operation and prevent equipment damage during switching operations.

Control Systems: Automatic power factor controllers monitor system conditions and switch capacitor banks to maintain optimal power factor across varying load conditions.

Maintenance and Monitoring

Regular maintenance ensures capacitor systems continue operating effectively:

  • Visual inspections: Check for physical damage, overheating, or unusual sounds
  • Electrical testing: Verify capacitor values and insulation integrity
  • Control system calibration: Ensure automatic controllers operate within design parameters
  • Performance monitoring: Track power factor improvements and energy savings

Common Challenges and Solutions

Over-Correction Issues

Installing too much capacitance can create leading power factor conditions, which may cause:

  • Voltage regulation problems
  • Increased system losses during light load periods
  • Potential resonance conditions with the system inductance

Solution: Use automatic controllers that prevent over-correction by switching capacitors out during light load conditions.

Harmonic Considerations

Electronic equipment and variable frequency drives generate harmonics that can interact negatively with capacitors, causing:

  • Capacitor overheating and premature failure
  • System resonance at harmonic frequencies
  • Increased harmonic distortion

Solution: Install harmonic filters or detuned reactors with capacitors to prevent harmful resonance conditions.

Switching Transients

Capacitor switching can create voltage transients that affect sensitive equipment:

  • Voltage spikes during energization
  • Oscillatory transients between capacitor banks
  • Equipment nuisance tripping

Solution: Use pre-insertion resistors, synchronous switching controllers, or soft-start systems to minimize switching transients.

ROI Analysis and Cost Justification

Calculating Return on Investment

Power factor correction typically provides an excellent return on investment through multiple benefit streams:

Direct Savings:

  • Elimination of utility power factor penalties
  • Reduced energy consumption from lower I²R losses
  • Demand charge reductions in some utility rate structures

Indirect Savings:

  • Extended equipment life reduces replacement costs
  • Lower maintenance expenses from reduced equipment stress
  • Increased system capacity without infrastructure upgrades

Example ROI Calculation

Facility Parameters:

  • Peak demand: 1,000 kW
  • Current power factor: 0.75
  • Utility penalty: 15% of bill
  • Monthly electrical costs: $30,000

Correction System:

  • Required capacitors: 484 kVAR
  • Installation cost: $45,000
  • Annual maintenance: $2,000

Annual Savings:

  • Power factor penalty elimination: $54,000
  • Energy loss reduction (3%): $10,800
  • Total annual savings: $64,800

Payback Period: $45,000 ÷ $64,800 = 8.3 months

Smart Grid Integration

Modern power factor correction systems increasingly integrate with smart grid technologies, providing:

  • Real-time communication: Capacitor systems can respond to utility signals for demand response programs
  • Advanced analytics: Cloud-based monitoring provides detailed performance insights
  • Predictive maintenance: AI-driven analysis identifies potential issues before they cause failures

Advanced Control Technologies

New control technologies improve correction system performance:

  • Faster switching: Advanced semiconductors enable rapid capacitor switching for dynamic correction
  • Improved algorithms: Machine learning optimizes capacitor operation based on facility usage patterns
  • Integration capabilities: Modern controllers interface with building management systems for comprehensive energy management

Conclusion: Transform Your Facility’s Electrical Efficiency

Power factor correction with capacitors represents one of the most effective strategies for improving electrical system efficiency and reducing operating costs. The technology is proven, reliable, and delivers measurable results that justify the investment through immediate utility bill reductions and long-term equipment benefits.

The key to successful implementation lies in proper system analysis, appropriate equipment selection, and professional installation. With utility penalties continuing to increase and energy efficiency becoming increasingly important, facilities that ignore power factor correction miss significant opportunities for cost savings and operational improvements.

Whether your facility faces utility power factor penalties, experiences equipment reliability issues, or simply wants to optimize electrical system performance, capacitors provide the solution. The question isn’t whether power factor correction makes sense, it’s how quickly you can implement it to start realizing the benefits.
